DCP-1500

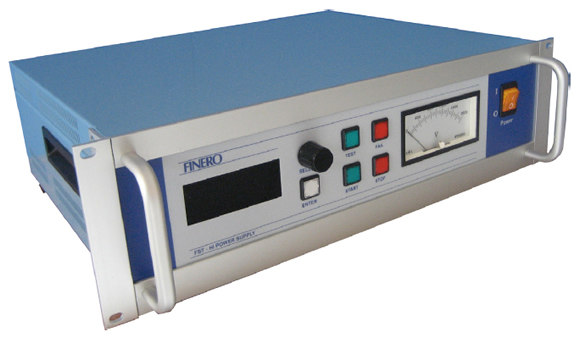

FINERO's DCP-1500 is variable voltage DC-Power Supply exclusively used to reactivate large electrolytic capacitor banks.

output voltage is automatically ramp controlled with variable speed stepper motor starting from 0 to set value.

Electronic current limiter controls the output. If the limit value is reached, the ramping is stopped until the leakage current level has decreased under limit value.

Normally ramping up is continued automatically to set the voltage level; but if the leakage current does not fall under the limit value within 20 seconds the process will be stopped.

output power is available from the rear panel 4mm banana sockets.
