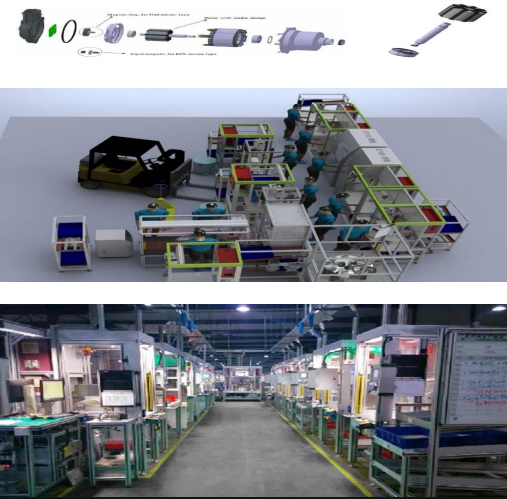

| Motor Auto-assembly Line |
| Features |
| • Cycle time<12s • CPK>1.67 • FPY>99.8% |
| Process |
• Total sixteen procedures as below
• Laser Marking
• Press stator
• Press bearing to endshield
• Press bearing endshield subassembly to rotor subassembly
• Press endshield rotor subassembly to motor housing subassembly
• Dipole assembly (glue, laser clean, magnetize, UV light, Vision)
• Press magnet ring
• Assembly O ring to contact unit subassembly
• Contact unit assembly & crimp
• leakage test
• Pre‐assembly of Rotor (Magnetize, Assembly)
• Press shaft seal
• Assemble spring washer
•Laser mark on |
|
